Square D Homeline Qwik-Grip 200A 60-Circuit 30-Space Indoor Main Breaker Plug-On Neutral Load Center

Item: #502869
Model : #HOM3060M200PQCVP
UPC #00785901641407
By: Square D
$224.99
In-store price may vary from online price. Not all products available at all stores.
SALE
Square D Homeline Qwik-Grip 200A 60-Circuit 30-Space Indoor Main Breaker Plug-On Neutral Load Center Image 1
zoom Created with Sketch.
View Full Size
Square D Homeline Qwik-Grip 200A 60-Circuit 30-Space Indoor Main Breaker Plug-On Neutral Load Center Image 2
zoom Created with Sketch.
View Full Size
Caption goes here.

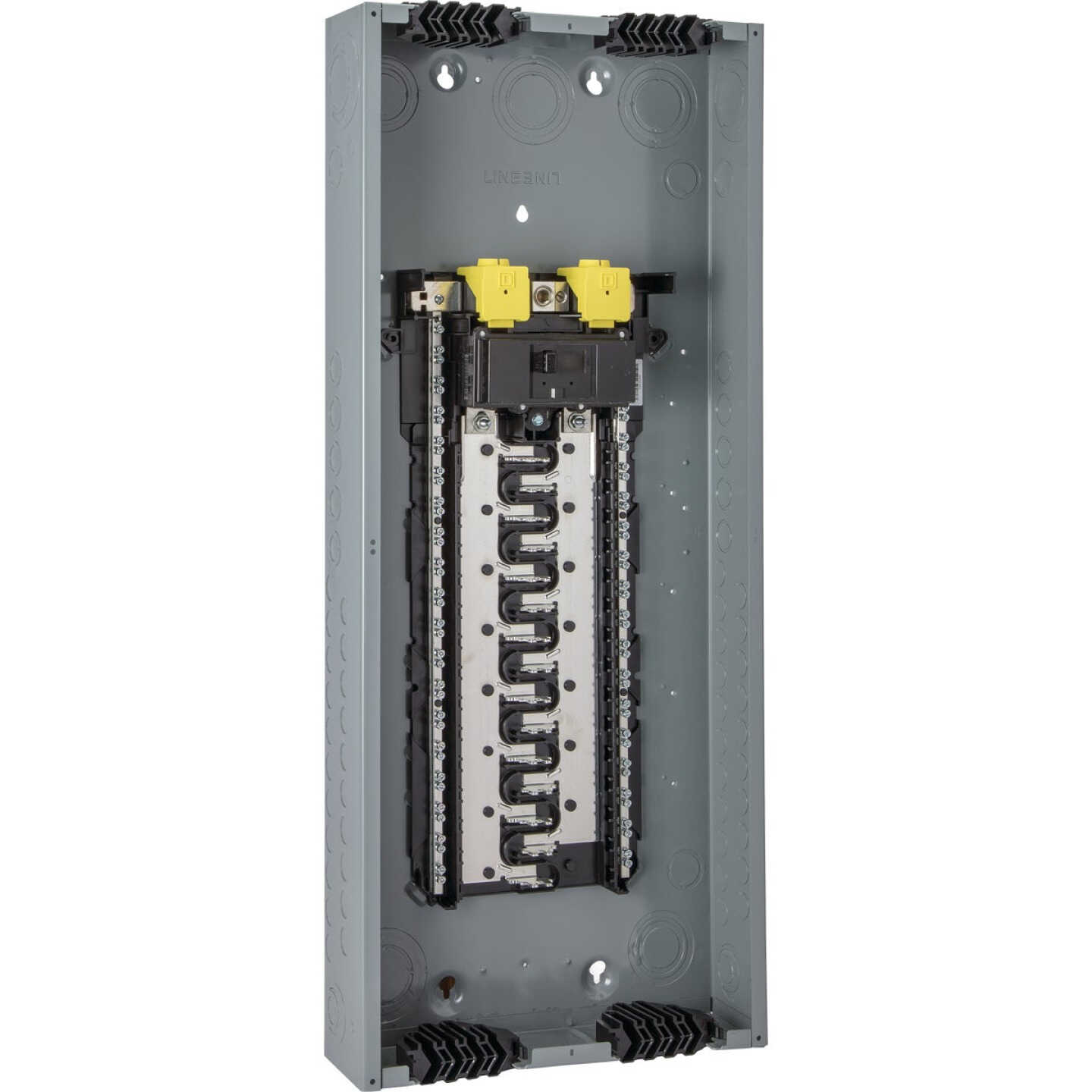

Square D Homeline Qwik-Grip 200A 60-Circuit 30-Space Indoor Main Breaker Plug-On Neutral Load Center Image 1

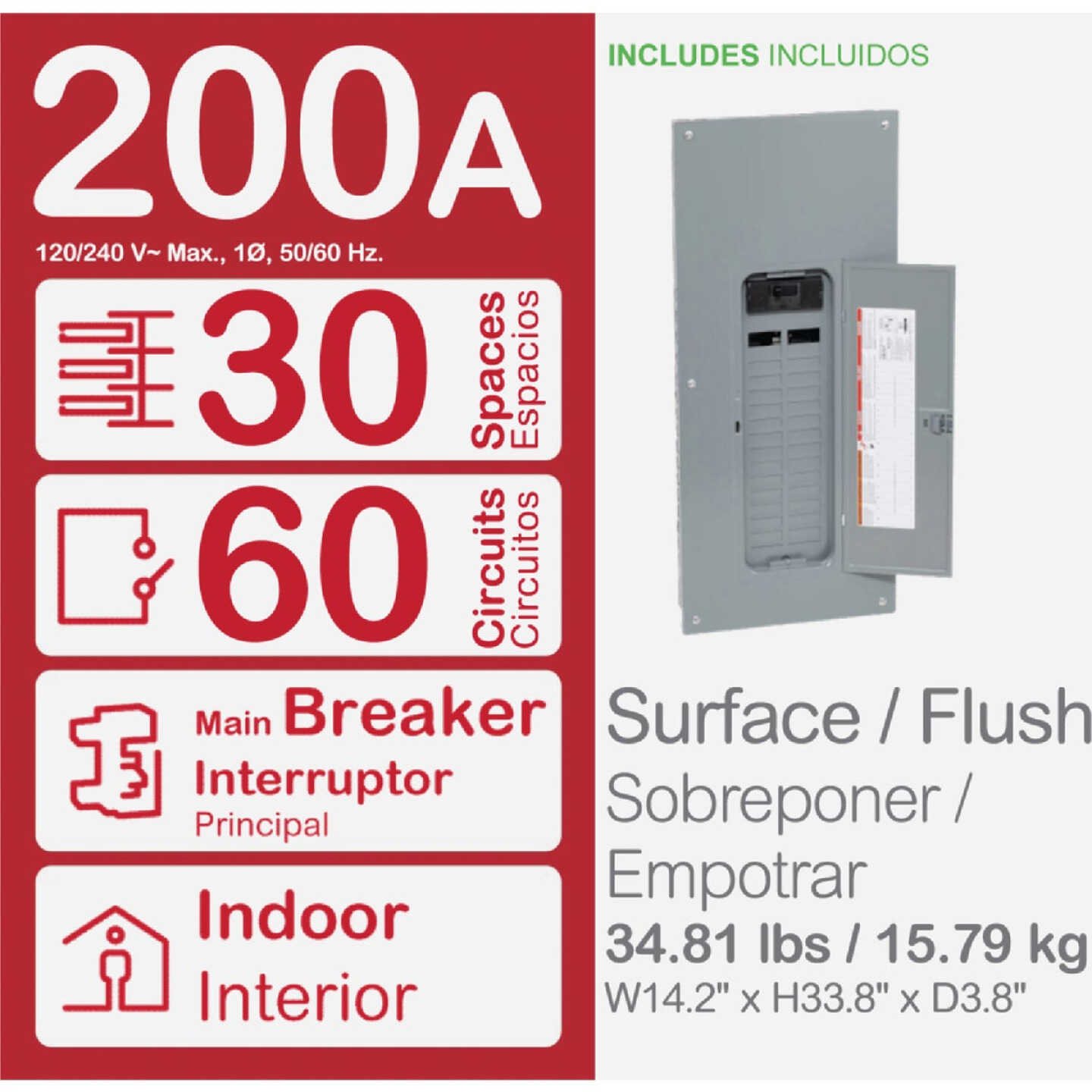

Square D Homeline Qwik-Grip 200A 60-Circuit 30-Space Indoor Main Breaker Plug-On Neutral Load Center Image 2
$224.99
In-store price may vary from online price. Not all products available at all stores.
Free Ship-to-Store
  • JETSONS6032 Huguenard Rd
    FORT WAYNE, IN 46818 US

    Estimated pickup day: 12/9/2025
Ship to Address
  • Ground Shipping Available
  • Expedited Shipping Available
Product DetailsReviewsQuestions & Answers
Other Options
Details
  • 100-amp main breaker plug-on neutral-ready load center value pack featuring Qwik-Grip wire management system to speed up wire installation.
  • Eliminates the need for almost all knock-outs, making rough-ins easy and fast.
  • Also reduces the risk of mistakes and having to install connectors because wires slide right into the Qwik-Grip insert in seconds.
  • Also makes adding a circuit simple.
  • No pigtail wires for easy installation and fewer number of wires to deal with.
  • Ideal for remodels or service changes, the Qwik-Grip insert is easily removed leaving a convenient opening to pull in the existing feeders.
  • Includes (3) HOM120CP circuit breakers, (2) HOM230CP circuit breakers, load center with 200-amp main breaker, and Qwik-Grip assembly kit. 22,000 air short circuit current rating.

Additional Details

  • Qwik-Grip wire management system speeds up wire installation
  • Eliminates the need for almost all knock-outs, making rough-ins easy and fast
  • Reduces the risk of mistakes and having to install connectors because wires slide right into the Qwik-Grip insert in seconds
  • Makes adding a circuit simple
  • No pigtail wires for easy installation and fewer number of wires to deal with
  • Ideal for remodels or service changes
  • UL Listed
Specifications
SeriesHomeline
Amperage200
Number Of Spaces30
Max Number of Circuits60
Voltage120/240
Enclosure TypeIndoor
Mount TypeCombination
PhaseSingle
Wire Size4 AWG-250 kcmil (Aluminum & Copper)
UL ListedUL Listed
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
BrandSquare D
UPC00785901641407
Package Quantity1
Unit of MeasurementEach
Country of OriginUnited States of America
