ElectricalCircuit Breakers, Fuses & Load CentersLoad Centers & Panel BoxesMain Lug Load CenterSquare D Homeline 225A 30-Space 60-Circuit Indoor Plug On Neutral Main Lug Load Center with Ground Bar
ElectricalCircuit Breakers, Fuses & Load CentersLoad Centers & Panel BoxesMain Lug Load CenterSquare D Homeline 225A 30-Space 60-Circuit Indoor Plug On Neutral Main Lug Load Center with Ground BarSquare D Homeline 225A 30-Space 60-Circuit Indoor Plug On Neutral Main Lug Load Center with Ground Bar
$154.99
In-store price may vary from online price. Not all products available at all stores.SALE
$154.99
In-store price may vary from online price. Not all products available at all stores.Free Ship-to-Store
- JETSONS6032 Huguenard Rd
FORT WAYNE, IN 46818 US
Estimated pickup day: 12/9/2025
Ship to Address
- Ground Shipping Available
- Expedited Shipping Available
Details
Specifications
Reviews

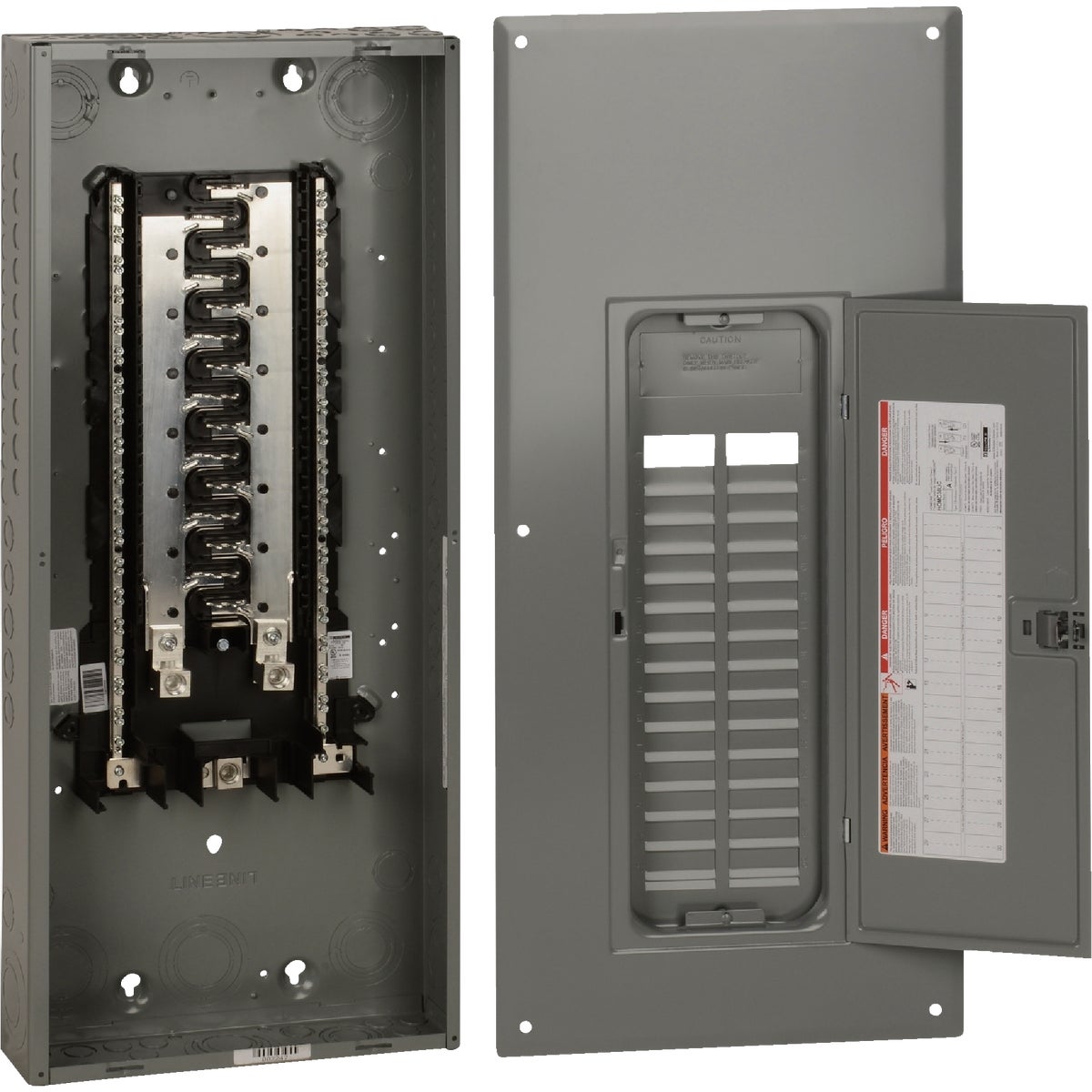

- Homeline load center that features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters.
- Homeline load centers enable the use of a full complement of accessories.
- Systems are single phase and are rated for indoor use or are rain proof.
- Designed for residential and industrial use to protect electrical systems, equipment, and people.
- This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase.
- Provides a 10 kA breaking capacity.
- This Plug On Neutral system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover.
- The electrical connections are box lugs.
- The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire.
- Load center has a grounding bar. 14.25 In.
- W. x 33.77 In.
- H. x 3.74 In.
- D.
- UL Listed.
Additional Details
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds

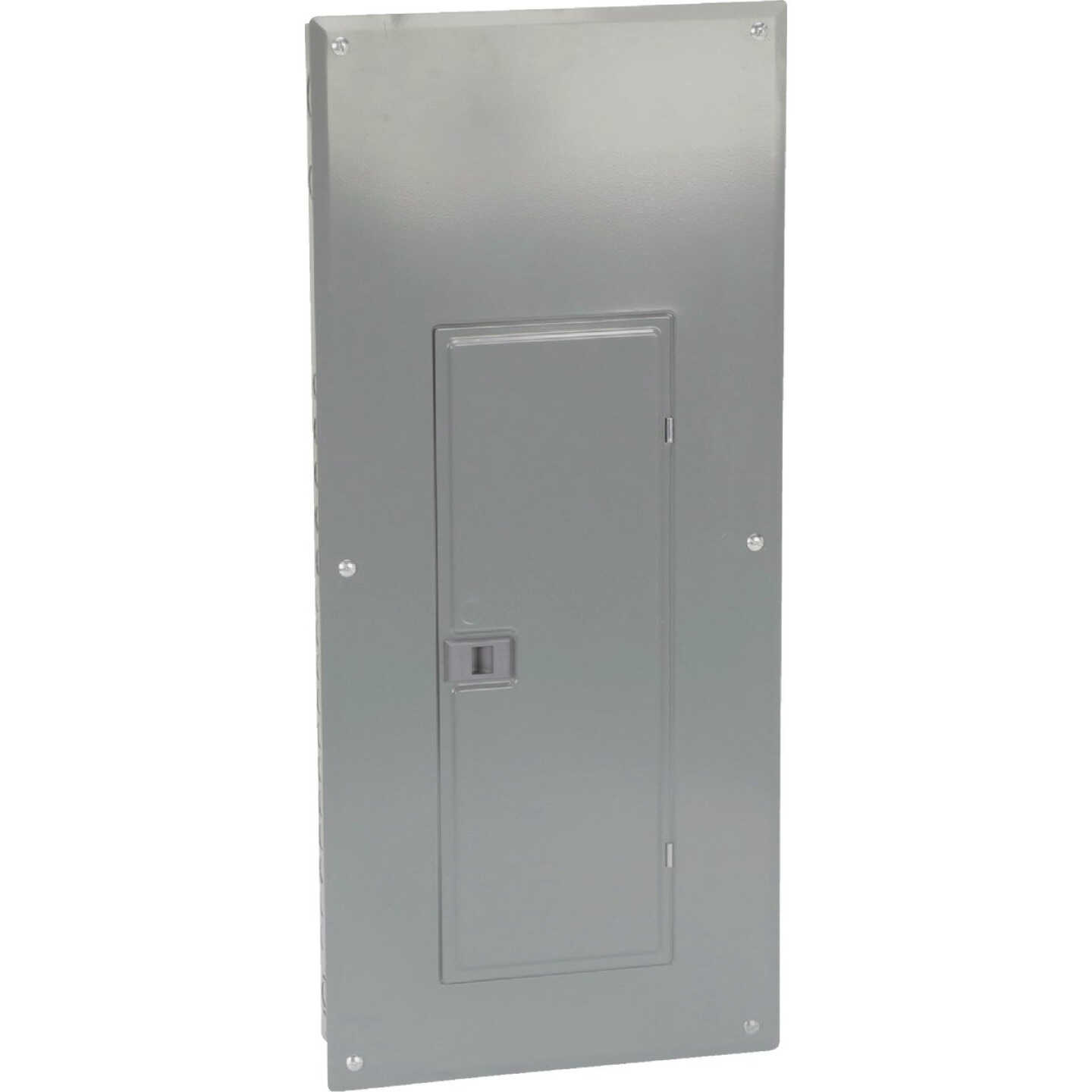

- Includes a combination flush/surface indoor cover
| Brand | Square D |
| Series | Homeline |
| Amperage | 225 |
| Number Of Spaces | 30 |
| Max Number of Poles | 60 |
| Voltage | 120/240 AC |
| Enclosure Type | Indoor NEMA 1 |
| Mount Type | Surface |
| Phase | Single |
| Wire Size | #4 AWG (Aluminum, Copper) |
| Height | 33.78 |
| Width | 14.25 |
| Depth | 3.74 |
| Certification | UL Listed |
| UPC | 00785901977223 |
| Package Quantity | 1 |
| Unit of Measurement | Each |
| Country of Origin | United States of America |
