HardwareBuilder's HardwareStraps & StrappingTension TieSimpson Strong-Tie 2-1/2 In. x 16 In. 11 ga Heavy Tension Tie Kit
HardwareBuilder's HardwareStraps & StrappingTension TieSimpson Strong-Tie 2-1/2 In. x 16 In. 11 ga Heavy Tension Tie KitSimpson Strong-Tie 2-1/2 In. x 16 In. 11 ga Heavy Tension Tie Kit
$54.99
In-store price may vary from online price. Not all products available at all stores.SALE
$54.99
In-store price may vary from online price. Not all products available at all stores.Free Ship-to-Store
- JETSONS6032 Huguenard Rd
FORT WAYNE, IN 46818 US
Estimated pickup day: 9/29/2026
Ship to Address
- Ground Shipping Available
- Expedited Shipping Available
Details
Specifications
Reviews

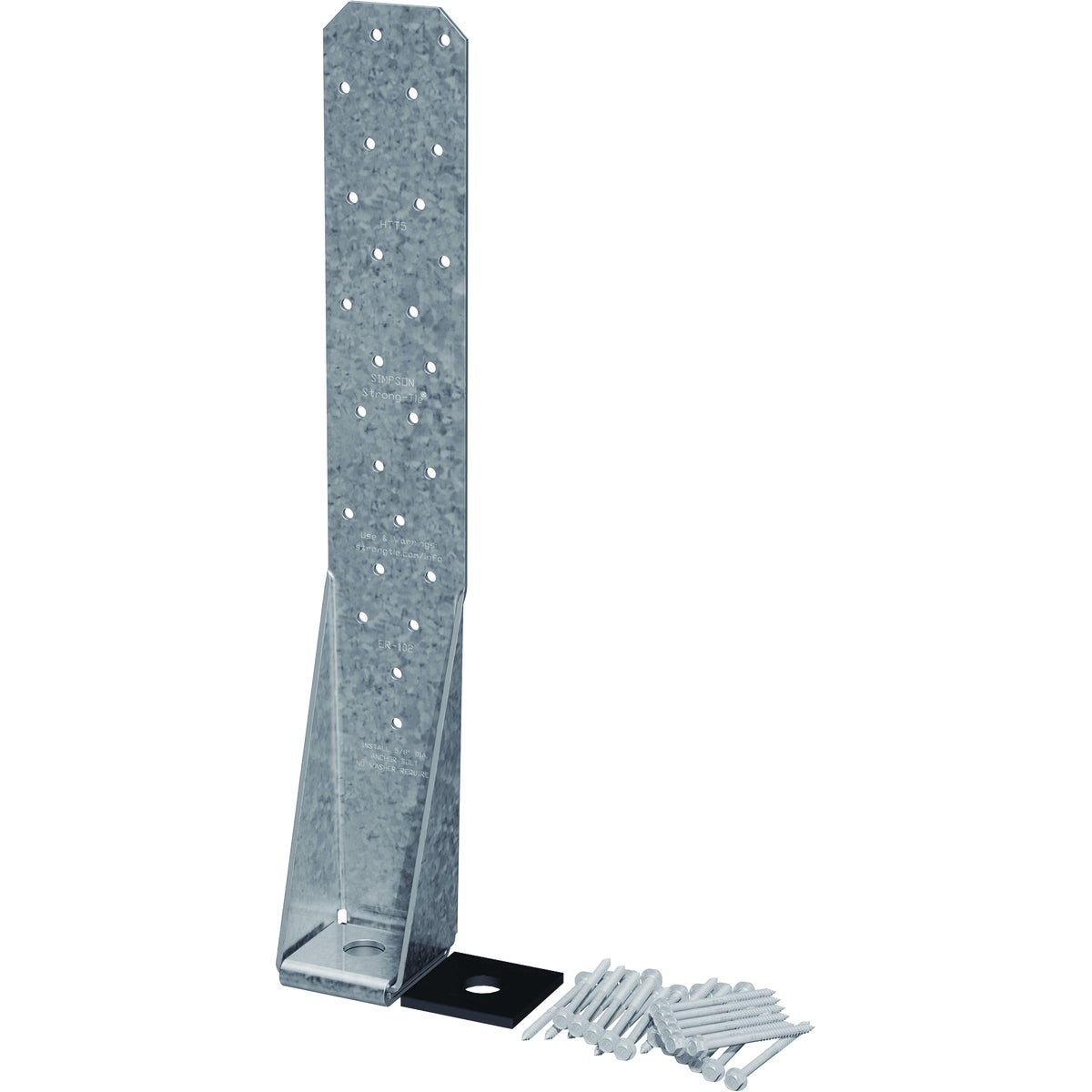

- The Simpson Strong-Tie HTT is designed to resist medium tension loads that are fastened with #10 screws.
- This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers.
- This tension tie provides high-strength, post-pour, concrete-to-steel connections.
Additional Details
- Can be installed with cast-in-place or post-installed anchor bolts
- Four-ply formed steel provides increased tension capacity
- Anchor bolt washers not required
- Anchor rod diameter: 5/8 inch
- HTT5KT is sold as a kit with the holdown, BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive SD Connector screws
- Made from 11-gauge steel
- Galvanized (G90) for corrosion resistance
| Brand | Simpson Strong-Tie |
| Width | 2-1/2 In. |
| Length | 16 In. |
| Finish | Galvanized Steel |
| UPC | 00707392357803 |
| Package Quantity | 1 |
| Unit of Measurement | Each |
| Country of Origin | United States of America |
