Simpson Strong-Tie Strong-Drive SDWS Quik Guard 0.160 In. x 3-1/2 In. T25 Framing Screw (750-Count)

Item: #220096
Model : #SDWS16312Q
UPC #00707392015284
By: Simpson Strong-Tie
$259.99
In-store price may vary from online price. Not all products available at all stores.
SALE

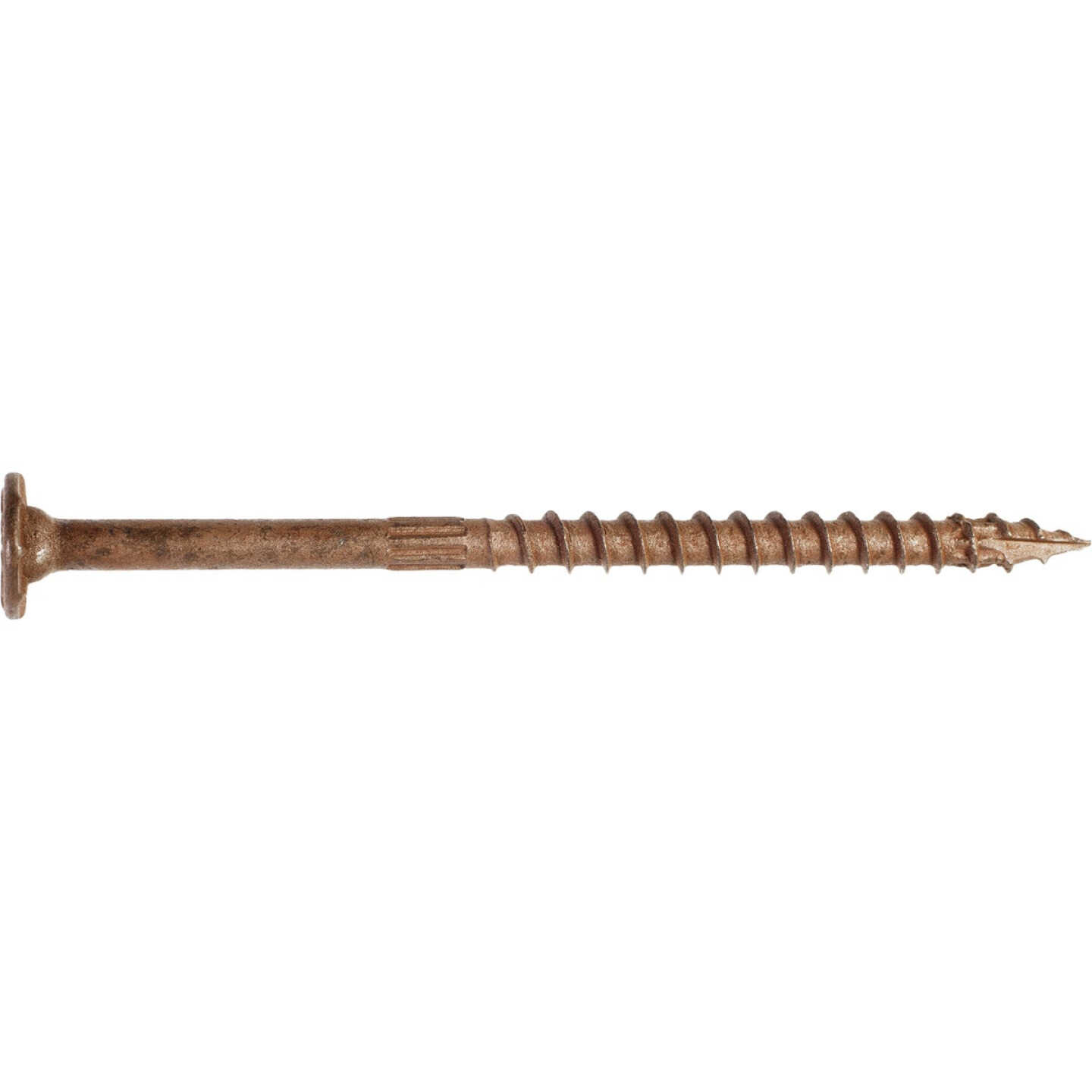

Simpson Strong-Tie Strong-Drive SDWS Quik Guard 0.160 In. x 3-1/2 In. T25 Framing Screw (750-Count) Image 1
zoom Created with Sketch.
View Full Size

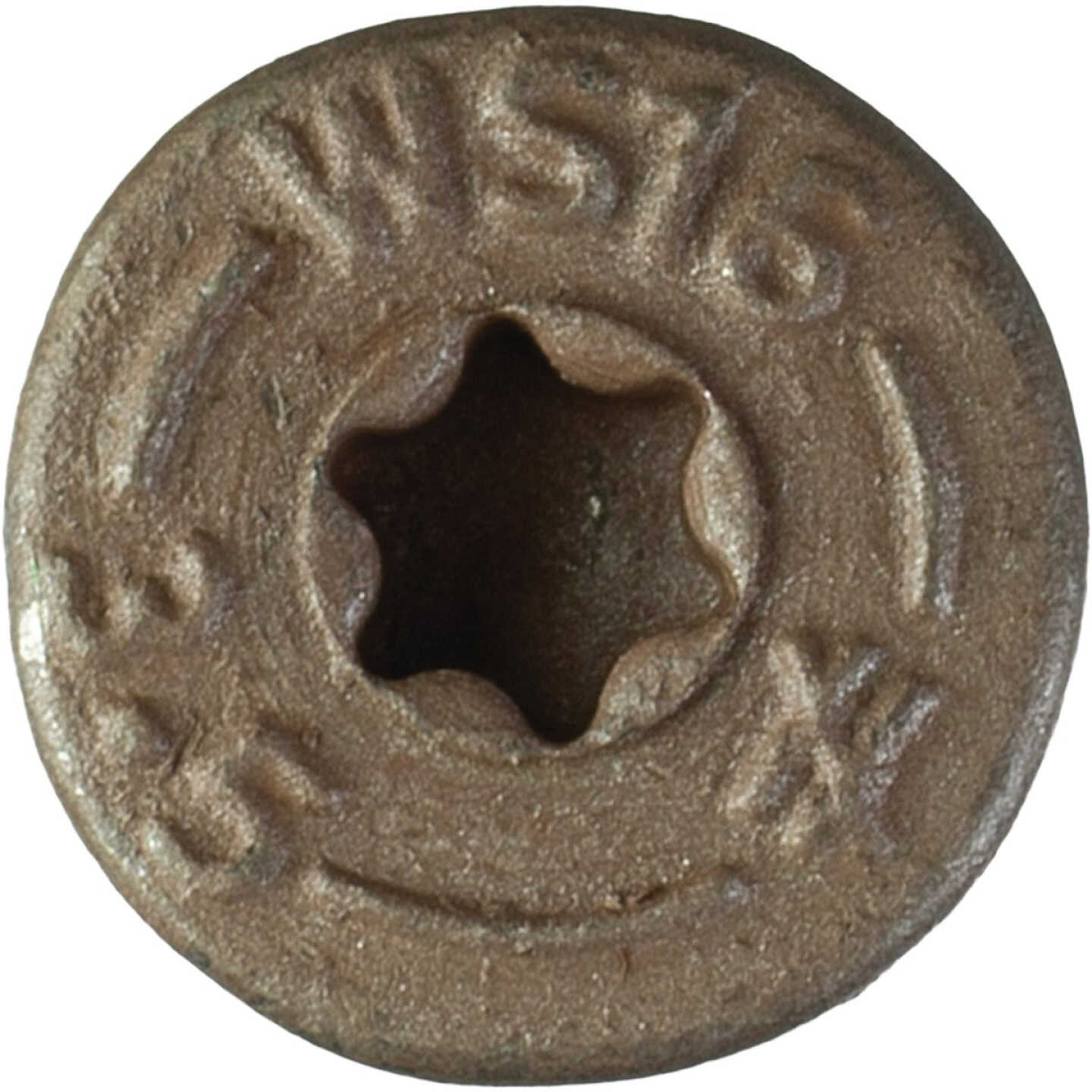

Simpson Strong-Tie Strong-Drive SDWS Quik Guard 0.160 In. x 3-1/2 In. T25 Framing Screw (750-Count) Image 2
zoom Created with Sketch.
View Full Size
Caption goes here.
Simpson Strong-Tie Strong-Drive SDWS Quik Guard 0.160 In. x 3-1/2 In. T25 Framing Screw (750-Count) Image 1
Simpson Strong-Tie Strong-Drive SDWS Quik Guard 0.160 In. x 3-1/2 In. T25 Framing Screw (750-Count) Image 2
$259.99
In-store price may vary from online price. Not all products available at all stores.
Free Ship-to-Store
  • JETSONS6032 Huguenard Rd
    FORT WAYNE, IN 46818 US

    Estimated pickup day: 4/1/2026
Ship to Address
  • Ground Shipping Available
  • Expedited Shipping Available
Product DetailsReviewsQuestions & Answers
Other Options
Details
  • The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications.
  • The SDWS Framing screw is superior to nails in holding power and pull-out resistance.
  • It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC and IBC code requirements for most common wood framing applications.
  • The screw has a SawTooth point that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish.
  • The T25 bit holds the 6-lobe recess tightly for more secure drive control.
  • Available in 2 1/2", 3", 3 1/2" and 4" lengths for a variety of uses.

Additional Details

  • Washer head with underhead box nibs provides increased bearing in structural applications and provides clean and easy countersinking
  • SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • The 6-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
  • Quik Guard coating provides protection in indoor and outdoor applications
  • Multipurpose wood-to-wood and engineered-wood applications, including framing, indoor/outdoor projects
Specifications
BrandSimpson Strong-Tie
Thread Diameter0.160 In.
Length3-1/2 In.
Drive TypeT25
Head TypeLow Profile
ColorTan
Diameter0.450 In.
Pieces in Kit750
UPC00707392015284
Package Quantity750
Unit of MeasurementCASE
Country of OriginTaiwan, Republic of China
